Sağlık merkezkaç pompası

400T/35M DONJOY MLX Open Centrifugal Pump For Beverage

Tüm Kategori

Paslanmaz çelik sanitasyon ekipmanları

Bizimle İletişim

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Şimdi iletişime geçin

400T/35M DONJOY MLX Open Centrifugal Pump For Beverage

Marka Adı:	DONJOY
Model Numarası:	MLX
Adedi:	Negotiation
fiyat:	Pazarlık edilebilir
Paketleme Ayrıntıları:	carton box
Ödeme Şartları:	T/T, LC, Credit Card

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Place of Origin:

CHINA

Sertifika:

CE,3A,FDA

Materials:

SS304 / SS316L

Operation:

Motor driver

Mechanical:

Single Seal / double seal

Connection:

6" Flange

Power:

380v / 50HZ

Medium:

wine / beer

Brand:

DONJOY

Vurgulamak:

35M Centrifugal Pump

400T Centrifugal Pump

DONJOY MLX Centrifugal Pump

Ürün Açıklaması

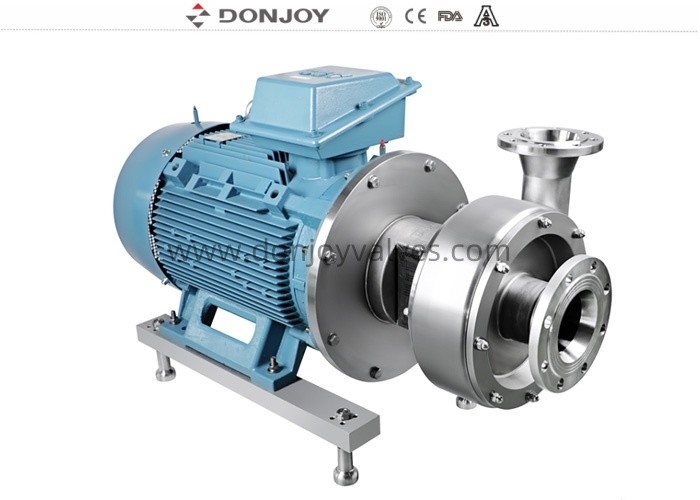

400T/35M DONJOY MLX open Centrifugal pump for beverage

Description

Options

1. Mechanical seal: SIC / SICE / EPDM, TC / TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5. Outside Surface sinishing:sandblast or mirror polish

Technical advantage:

1.Very simple maintenace, no speical tools request, no professionals request

2.Initial use of intallation debugging, even if a short reverse rotation will not be damaged

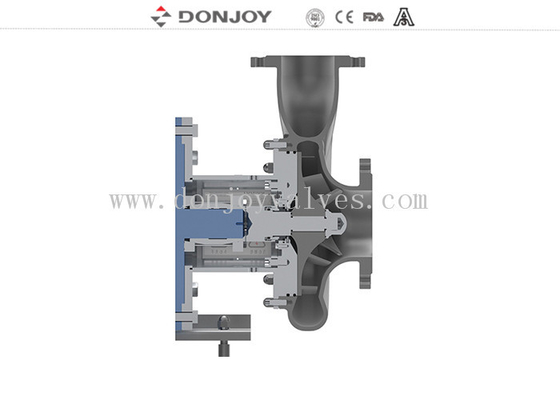

3.Impeller and shaft are connected by keyway, impeller and mechanical seal rotating ring are connected by pin, mechanical seal statric ring and pump body are connected by special shasped flange

4. Compatible with single seal and double machine seal, only need to change machine seal

Specifications

Product Name:	Donjoy MLX Centrifugal Pump with 200m³/h for big flowrate
Valve Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow:	1000 m3/h
Max. Speed:	3600 min-1
Max. Head:	70H (m)
Max. Working Pressure:	7 bar / 99 PSI
Max. Working Temperature:	120 °C
Mechanical seal:	SIC/Sic/EPDM(Standard), C/SIC, TC/TC
Sealing type:	Flushed double mechanical seal / single mechanical seal(standard)
Motor power:	1.1kw, 1.5kw, 2.2kw
Voltage:	110V, 220V, 380V
Motor:	ABB / domestic / SIEMENS
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Application structure:	DLX
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Eclectic
Low discharge option :	Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Feature

Motor: ABB / domestic / SIEMENS Motor ( optional )

Availabe connection: tri-clamped, threaded and Flanged.

Available standard: DIN, SMS, 3A, RJT, ISO / IDF

Sealing type: machanical seal

Function: flow control

Applications

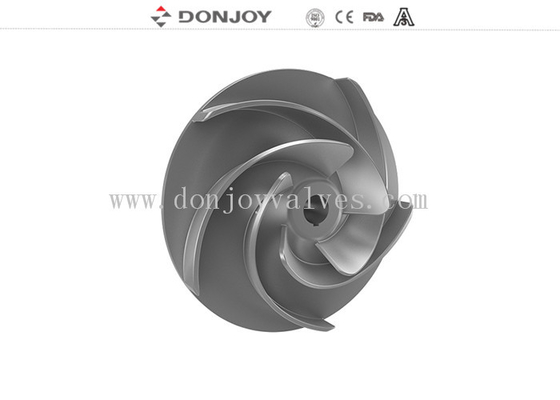

The MLX Series is a high-flow centrifugal pump with open impller design, The hydraulic model is designed with CFD to improve the over-shear damage of materials under the premise of ensuring high efficiency hydraulic performance. Pump cover and parts contacting with medium are all made of 304/316l SS. It is mainly use to transport low-viscosity fermentation broth, wort, juice, jam, food, beverage, etc.. and can also be sued for in dustrial fileds such as pharmaceutical, chemical, industrial water, driking water treatment and so on.

Selection table

400T/35M DONJOY MLX Open Centrifugal Pump For Beverage 0

400T/35M DONJOY MLX Open Centrifugal Pump For Beverage 1 PUMP CURVE

400T/35M DONJOY MLX Open Centrifugal Pump For Beverage 2

400T/35M DONJOY MLX Open Centrifugal Pump For Beverage 3

Competitive Advantage

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Performance graph

D-LX Centrifugal comprehensive performance graph
