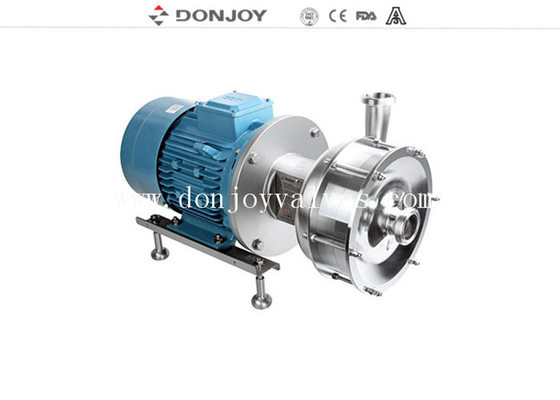

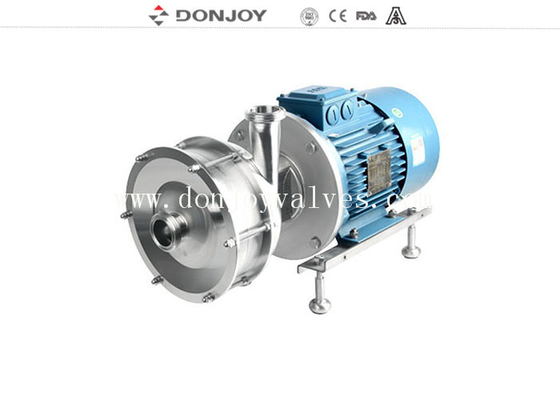

SS316L Multi Stage Open Impeller Centrifugal Pump With 100 Meter Head

SS316L Multi-stage open impeller Centrifugal pump with 100meter head

Solution for high efficiency, low noise, high head, simple and economical maintenance, high purity

Description

The DLX Series centrifugal pump is a horizontal multi-stage open impeller centrifugal pump with high purity, high efficiency, max head can be up to 180M(18Bar). It is soft and hygienic to transport medium. Mainly used in food and beverage, dairy, brewery carbonation process, CIP feed, pharmaceutical industry, pure water pump(WFI Injection water), biotechnology production, infusion(nutrient solution, ethanol)filling station, personal care, soap, skin cream, lotion industry, purification treatment(CIP system),water technology, semiconductor production, metal surface treatment, etc..

Options
1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM (Single seal/ Double seal)
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ

5. Motor brand:  Siemens, ABB, Chinese Brand

Specifications


 Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.

Technical Advantages

Maintenance disassembly and installation can be completed without professional staff and special tools.

Initial use of installation debugging, even if a short revere rotation will not be damage.

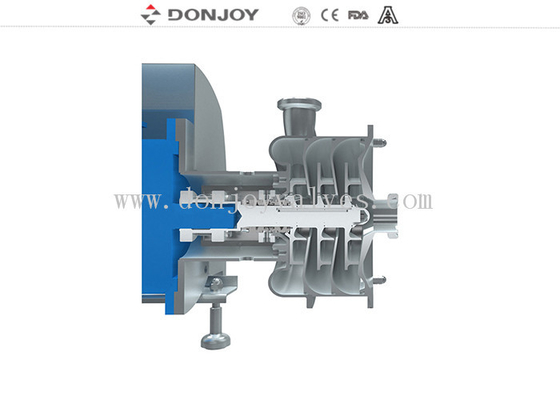

Impeller and shaft are connected by keyway, Impeller and mechanical seal rotating ring are connected by pin.Mechanical seal static ring and pump body are connected by special-shaped flange

Compatible with single and double machine seal, only need to change machines seal.

Connection

Selection Table

Drawing

DLX Drawing

PUMP CURVE

Packaging Details
Plywood case or customerized. Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Tag: Donjoy centrifugal pumps, DLX centrifugal pumps, Sanitary pumps
