Paslanmaz çelik görüş camı

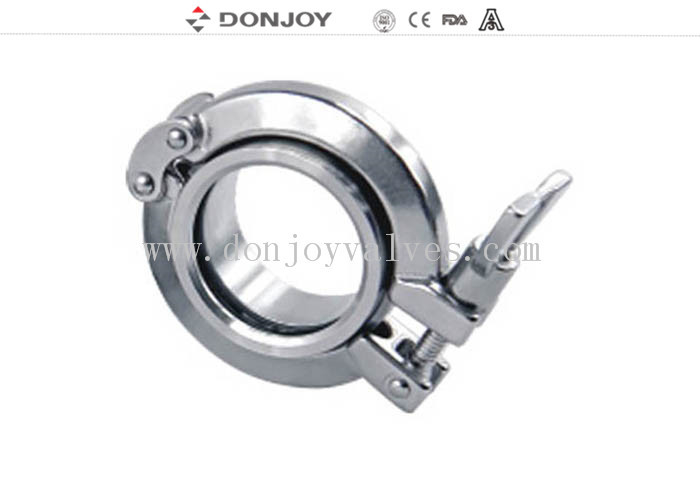

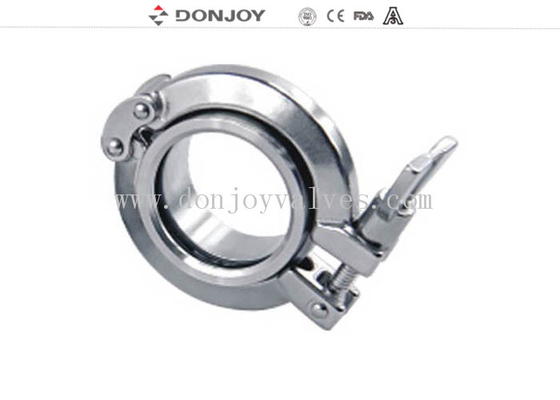

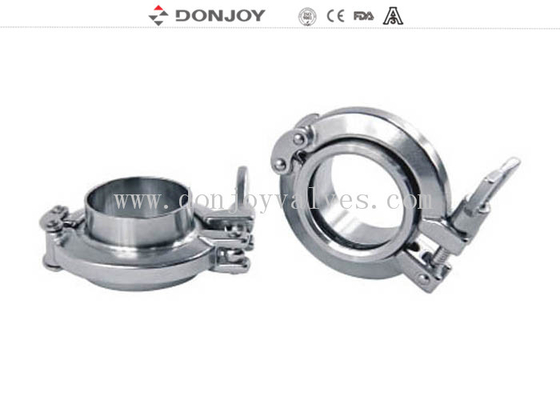

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass

Tüm Kategori

Paslanmaz çelik sanitasyon ekipmanları

Bizimle İletişim

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Şimdi iletişime geçin

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass

Marka Adı:	DONJOY
Model Numarası:	NO.VSJ500N1
Adedi:	Negotiation
Paketleme Ayrıntıları:	Carton, Wooden Case
Ödeme Şartları:	T/T,L/C, Credit Card

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Place of Origin:

CHINA

Sertifika:

CE/FDA/ISO/3A

Item name:

DONJOY clamp union sight glass

SIZE:

DN25-DN300/1"-12"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread

Surface finishing:

External or internal polishing

Using:

Could be used vertically or horizontally

Vurgulamak:

SS Sight Glass

stainless sight glass

Ürün Açıklaması

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass

Brief Description

Clamp union Sight Glass

Size:1 inch - 12 inch

Operation mode: Manual

Gasket: EPDM, PTFE

Specification

Product Name:	316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	120 degree
Availably connection:	Clamp, Thread, weld, Flange
Availably standard:	DIN, SMS, 3A, ISO
Certificate:	3A, PED, FDA, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Model of tubular sight glass:	DIN-VSJ130N1, IDF-VSJ130N1, VSJ130N1, SMS-VSJ130N1
Standard of gasket:	FDA177.2600

Application
Clamp union sight-glass is comprised of stainless steel frame and glass.Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industuries.

Design
360° full angle for observation
Can be used in vertical or horizontal position
Could be installed with light and wipper.
Parts contact with liquid : ASME 316L/304

Detailed Instruction

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass 0
