Marka Adı:	DONJOY
Model Numarası:	NO.VAQ100S2
Adedi:	Negotiation
fiyat:	USD10-100/SET
Paketleme Ayrıntıları:	Carton, Wooden Case
Ödeme Şartları:	T/T,L/C, Credit Card

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Place of Origin:

CHINA

Sertifika:

CE/FDA/ISO/3A

name:

quickly Pressure Safety Valve

SIZE:

1"-3"

Stanadard:

DIN , 3A, SMS , SO

Connection:

Welded, Clamped,Thread,

Polished:

Mirror, Matte

inlet pressure:

8 bar

outlet pressure:

0.3-5 bar

KV value:

4-70M3/H

Supply Ability:

10000PCS/ week

Vurgulamak:

pressure regulating valve

air release valve

Ürün Açıklaması

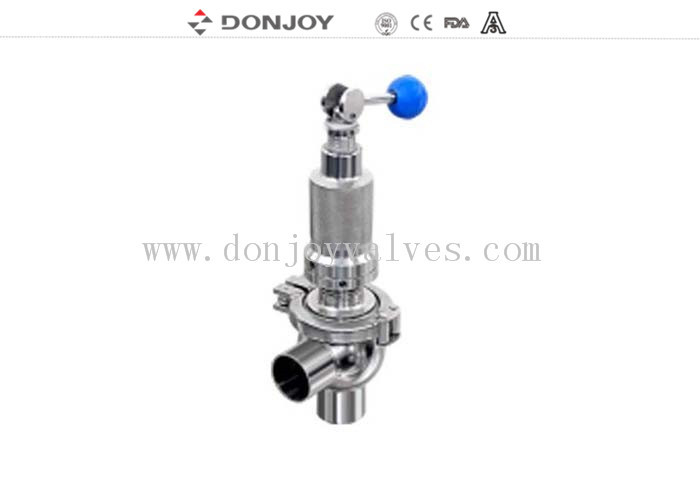

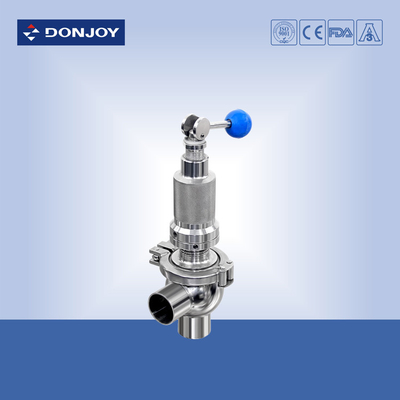

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped

Quick Detail

Pressure Safety Valve, Over flow Valve ,Pressure adjustment.

Type: Manula, Pnuematic

Applications:

1. Safety valve is used to protecting pipe,pump from over pressure

2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure

3. With sanitary design stainless steel, the valves is best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.

Specification

Product Name:	1.5" SS304 manual quickly release safety valve, over flow valve,Clamped
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM,NBR,FPM
Max.Working Pressure:	10Bar 120PSI
Max. Working Temperature:	120 degree C
Available size:	DN25-DN80 or 1” - 3"
Available connection:	Flange,Clamp,Welded
Available standard:	DIN,INCH,IDF,3A,SMS
Operate:	Pneumatic, Manual
Certificate:	FDA,CE

Drawing

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped 0

1.5" SS304 manual quickly Pressure Safety Valve , over flow valve Clamped 1

Manual safety valve (Weld ends)

Size	D	DN	L	H	H1	H2
1"	25.4	22.4	50	216	260	269
1.25"	31.8	28.8	55	218	260	269
1.5"	38.1	35.1	60	222	266	309
2"	50.8	47.8	70	265	300	350
2.5"	63.5	59.5	80	297	340	392
3"	76.2	72.2	99	339	370	507

Manual safety valve (Clamp ends)

Size	D	DN	L	H	H1	H2
1"	50.5	22.4	62.7	228.5	260	269
1.25"	50.5	28.8	67.7	230.5	260	269
1.5"	50.5	35.1	72.7	234.5	266	309
2"	64	47.8	82.7	277.5	300	350
2.5"	77.5	59.5	92.7	309.5	340	392
3"	91	72.2	111.7	351.5	370	507
