Marka Adı:	DONJOY
Model Numarası:	NO.VQK110S1
Adedi:	Negotiation
fiyat:	Pazarlık edilebilir
Paketleme Ayrıntıları:	carton box
Ödeme Şartları:	T/T, LC, Credit Card

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Place of Origin:

CHINA

Sertifika:

CE,3A,FDA

Product Name:

Ball Valve

Size Of Panel:

DN25-DN65

Operation:

Pneumatic, Control Head,Manual

Media:

304/316L

Connection:

Welded, Clamped, Thread, Flange

Seal Materials:

PTFE

Supply Ability:

1000pcs/Day

Vurgulamak:

electric ball valve

pneumatic ball valve

Ürün Açıklaması

SS304, DN32 Clamped non-retention valve,ISO,SMS BPE Welded Connnection

Quickly Detail

Ball Valve. manual Ball Valve

Product Desciption

1. Name: Stainless Steel Sanitary Non Retention Clamped Ball Valve
2. Size: DN15-DN65,1/2"-2.5" or as required

3. Standards: DIN,3A,SMS,ISO,IDF

4. Material: SS304,SS316L

5. Max Working pressure: 10Bar

6. Max Working temp: 120 °C

7. Type: Manual , Pneumatic

8. Seal Ring: Silicon, EPDM, Viton, PTFE or required

9. Connection: Welded, threaded, clamped & flange ended

10. Sample: Sample and freight cost can be negotiable

Specification

Product Name:	SS304, DN32 Clamped non-retention valve,ISO,SMS BPE Welded Connnection
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	150 degree C
Availably size:	DN25-DN65 or 3/4" - 2.5"
Availably connection:	Weld,Clamp,Thread, Flange
Availably standard:	DIN,SMS,3A
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Certificate:	FDA,CE,3A,ISO

Applications:

Overall valve body design prevents the medium from retaining in the valve after flowing through the body. This kind of ball valve is applied to pharmacy and boitechnology indurstries.

Design and features:

Valve body combined with clamp Connection

Easy dasasemble without special toods

Samll operating torque

Gasket with FDA 177.2600 Certificate

Valve Body can be replaced in any connection and valve length will not change.

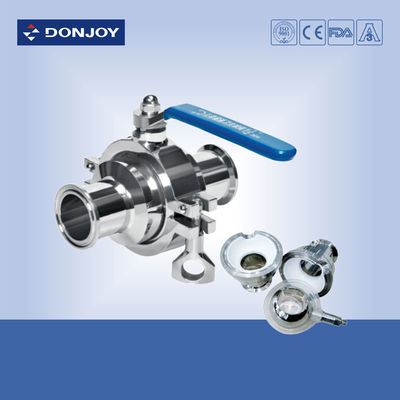

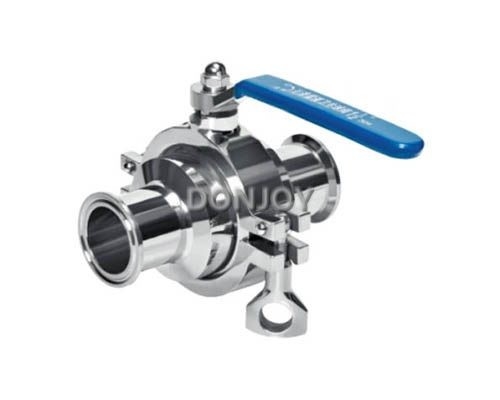

SS304, DN32 Clamped non-retention ball valve,ISO,SMS BPE Welded Connnection 0

Competitive Advantage:

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
