Sıhhi Diyafram Vana

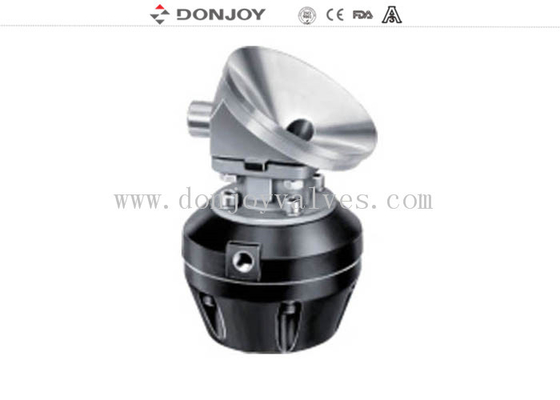

2 Inch Welding 316l Pneumatic Tank Bottom Sanitary Diaphragm Valve with Plastic Actuator

Tüm Kategori

Paslanmaz çelik sanitasyon ekipmanları

Bizimle İletişim

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Şimdi iletişime geçin

2 Inch Welding 316l Pneumatic Tank Bottom Sanitary Diaphragm Valve with Plastic Actuator

Marka Adı:	Donjoy
Model Numarası:	NO. G-K
Adedi:	Negotiation
fiyat:	Pazarlık edilebilir
Paketleme Ayrıntıları:	Carton box
Ödeme Şartları:	T/T, LC, Credit Card

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Place of Origin:

China

Sertifika:

CE,3A,FDA

Product Name:

pneumatic tank bottom valve with plastic actuator

Materials:

forging body SS316L / 1.4404

Size:

Dn25 to Dn100, 1 INCH - 4INCH

Max temperature:

-30 to 130 degree c (plastic actuator)

Connection:

clamp, welding, other special connection

Gasket:

PTFE+ EPDM(standard)

Max pressure:

PTFE(4.5bar), EPDM(6 bar) (standard)

Operation:

Pneumatic,manual

Vurgulamak:

diaphragm check valve

sanitary sample valve

Ürün Açıklaması

2 Inch Welding 316l Pneumatic Tank Bottom Sanitary Diaphragm Valve with Plastic Actuator

Description:

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.

The valve is excellent for flow control as well as open/close control

The diaphragm valves are better in feature of flow in comparison with other valves.It is eaiser to clean up and better to process the substance with particles.
The phenomenon of air pocket is rare during application of flow control.

Specifications

Product Name:	Pneumatic Tank Bottom Valve with Plastic Actuator
Diaphragm	Single diaphragm:sillcone/EPDM/FPM gasket One piece adhesive diaphragm: PTFE+EPDM Two pieces: PTFE+EPDM Mini-type: single (EPDM/ SILICONE/ FPM) Double(PTFE+EPDM)
Max.Working Temperature:	-30degree c to 130 degree c (depending on diaphragm)
Max.Working Pressure:	6 bar to 8 bar (depending on diaphragm)
Valve body	casting body or forging body 1.4404/316L
Available size:	DN25-DN100, 1 inch- 4 inch
Available connection:	Clamp / welding / special connection
Available standard:	3A /BPE / DIN / ISO / IDF
Operation:	Manual, Pneumatic
Available structure:	tank bottom valve, tank bottom valve with sampling valve
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging details	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details	Usually within 20 days after receiving T/T down payment.

Various configuration of Diaphragm valve

Pneumatic Operation

1.Stainless steel actuator

2. Plastic actuator

3. IL-TOP positioner

4. C-TOP controller

5. Positioner sensor

Manual Operation

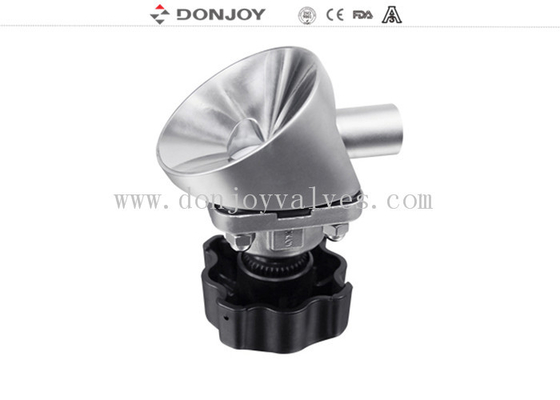

6. Plastic Handle

7. Stainless steel handle

Valve Body Material

8. Body: Casting / Forging

Valve Body:

Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the hightemperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to letthe whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting ofthe stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Valve positioner Technical specifications:

Size:1"-4",DN20-DN100

Power supply:DC 24V

Signal input:0/4-20mA, 0-5/10V(standard)

Output feedback:4-20mA, 0-10V(option)

Bus: DEVICE NET BUS

Actuator:plastic and stainless steel

grade: IP67

Product drawing

2 Inch Welding 316l Pneumatic Tank Bottom Sanitary Diaphragm Valve with Plastic Actuator 1

Tags : Tank bottom valve, Diaphragm valve, Donjoy Tank diaphragm bottom valve
